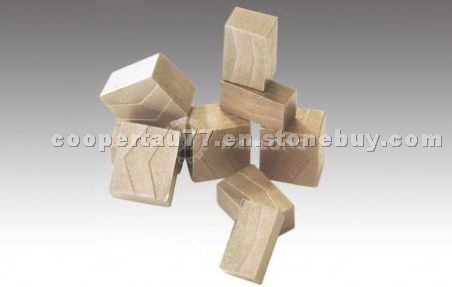

diamond segment for cutting large size block

• Place of Origin:

   China

• Type:

  Diamond Tools and Consumables

• Genre:

  Diamond Tools, Consumables and Stone Care Products

• sCode:

  STPR1465631

• Place of Origin:

  China
• Brief introduction: High Frequency welded,for granite,marble,sandstone,limestone,slate,basalt and so on,used on large size gantry cutting machine and single column cutting machine.
  Characteristics of products: fast cutting speed, good life span, stable performance

  Diameter (mm ) W1 W2 H L Number
  900 6.9 6.1 13 24 64
  1000 6.9 6.1 13 24 70
  1100 7.4 6.6 13 24 74
  1200 7.4 6.6 13 24 80
  1300 8.4 7.6 13 24 88
  1400 8.4 7.6 13 24 92
  1500 9.2 8.4 13 24 100
  1600 9.2 8.4 13 24 108
  1700 9.2 8.4 13 24 112
  1800 9.9 9.1 13 24 120
  2000 11.0 10.0 15 24 128
  2200 11.0 10.0 15 24 132
  2500 12.5 11.5 20 24 140
  2700 12.5 11.5 20 24 140
  3000 12.5 11.5 20 24 160
  3500 13.0 12.0 20 24 180

  Please forward us the following technical data when ordering the above products.
  Diameter: Specification of Segment Order Amount
  Diameter of Inner hole Number of Segments in Each Blade Delivery Date:
  Cutting Material
  Please forward us the following technical data if it is available for you!
  Turning Speed of Blade(rpm/min) Linear Speed(m/min) Motor Power(KW)
  Cutting Depth(m/min) Cutting Depth(mm) Cooling Water Comsuption(L/min)
  Main Characteristic of Cutting Material
